Pisces
Underwater LED Light
Pisces is a rechargeable underwater LED light designed for commercial fishing and fisheries research.
Built for the demands of working at sea, it lets you test different light colours, brightness levels and flash rates to investigate how lighting affects fish behaviour and catch selectivity.
Built for Fishing Gear
Designed to handle the knocks that come with working at sea. Its compact design and mounting points allow it to be fitted to different gear configurations.
Configurable Underwater Lighting
Six colours, four brightness levels and four flash rates to investigate how different lighting conditions affect fish behaviour and catch.
Rechargeable & Wireless
No disposable batteries to replace and no external battery pack to attach. Place the lights in the supplied charging case between deployments.
Underwater LED Lights for Commercial Fishing Gear
Rechargeable
Charge Pisces wirelessly in the supplied charging case between deployments. No disposable batteries to replace.
Long Battery Life
Adapt battery use to your needs. Pisces runs for up to 250h at lower brightness, or up to 20h at max brightness.

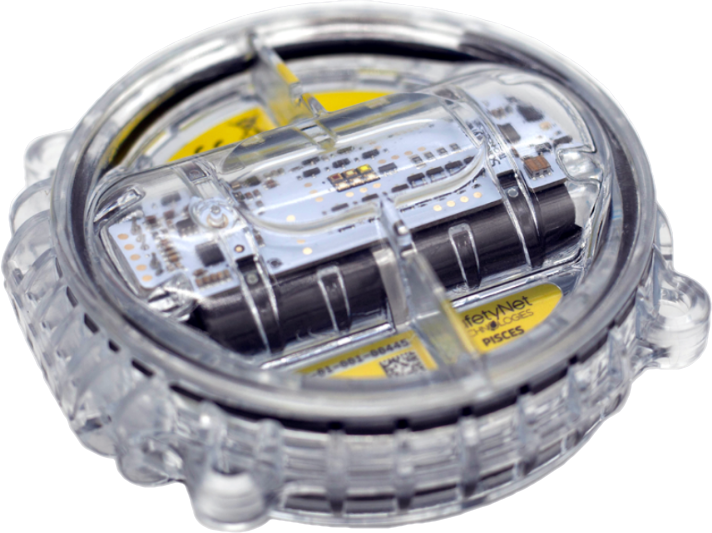

Built for Fishing Gear
Compact and built for harsh conditions at sea. Four mounting holes allow easy set up on any gear type.
Configurable Lighting
Choose from six colours and four flash rates to attract or deter specific fish species.
Immersion Activated
Automatically switches on when submerged and off when removed from the water.
Rated to 800m
Designed for deep-water commercial fishing and marine research applications.
See the full technical specifications
From Fishing Trials to Marine Research
Each project with a different lighting need for their research question.

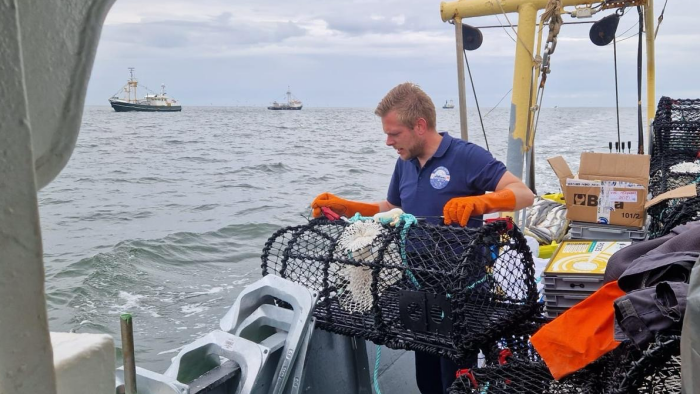

Light as Bait Alternative
Investigating how underwater light can be used as an alternative to traditional bait in pot and trap fisheries.
Fish Behaviour Study
PhD Jasmine Somerville used Pisces to understand the vision of marine species and how they respond to light underwater.

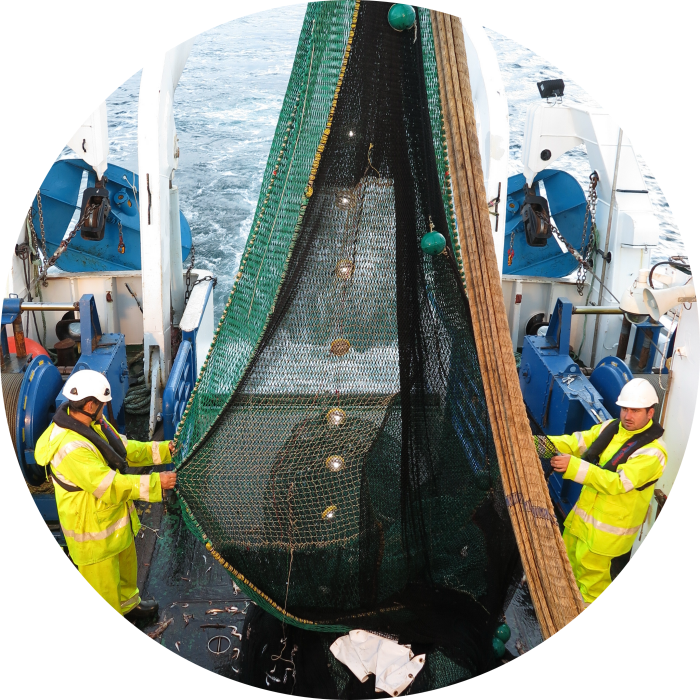

Fisheries and Bycatch Research
To test whether different colours and brightness levels influence the entry or escape of target and non-target species.
See your gear underwater
Pair Pisces with a CatchCam camera to record fish behaviour and gear interactions, helping you understand how fish respond to light during a deployment.
Find the right Pisces set up
Whether you’re testing one light on a pot or running a multi-light trial on a trawl, the right setup depends on your gear, target species and objectives. Pisces is available as individual lights or multi-light packages.
Contact us to discuss your gear, how many lights you need and what you want to investigate. We’ll help you identify the right setup.
Pisces packages range from £1,499 to £4,000, according to the amount of units required and addons.
Tested in commercial fisheries and research projects:
FAQs
Pisces is a rechargeable underwater LED light designed for commercial fishing gear and fisheries research. It allows users to test how different lighting conditions affect fish behaviour and catch selectivity.
Underwater lighting has shown potential to influence catch selectivity in some fisheries, but results vary. The outcome depends on the species, gear, light settings and positioning. Pisces is a tool for testing these effects, not a guarantee of bycatch reduction.
Pisces can be used to investigate whether lighting attracts target species or could provide an alternative to traditional bait in specific fisheries. These outcomes depend on the species and fishing conditions and should be tested before assuming a benefit.
Pisces has a maximum depth rating of 800 metres.
Battery life depends on the light settings and operating conditions. Pisces can run for up to 20 hours at maximum brightness, with longer operating times at lower brightness settings, up to 250 hours. Confirm the relevant conditions in the product datasheet.
Pisces is charged wirelessly using the supplied charging case. There is no need to open the light to change batteries or attach an external battery pack to your gear.

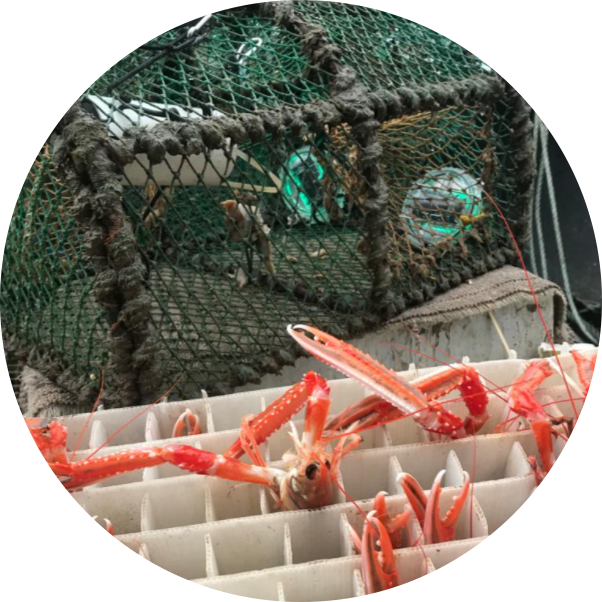

Pisces has been trialled on demersal and mid-water trawls, scallop gear, pots and traps, and pole-and-line fisheries. Mounting requirements depend on the gear and deployment.
Start with your target species, unwanted catch, gear type and the question you want to answer. Our team at CatchCam Technologies can discuss suitable configurations and how to evaluate the results. Reach out to us if you have more questions and we’ll help you find the right set up for your Pisces lights. Our email is: contact@catchcam.tech.
